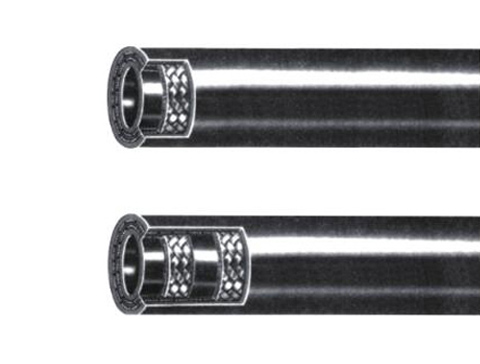

SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses

LT689SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses

●
Tube：black oil-resistant synthetic rubber
●
Reinforcement：one or two layers of super flexible high-strength steel wire
●
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Get a free quote
Online message
24-hour hotline service：
13523078947
Details description Specifications Online message Related Products
●
Applications：suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General
●
Tube：black oil-resistant synthetic rubber
●
Reinforcement：one or two layers of super flexible high-strength steel wire
●
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
●
Temperature range： -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
Specifications

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    5

    3/16

    4.6

    5.4

    12.7

    28

    56

    45

    6

    1/4

    6.2

    7.0

    14.4

    28

    56

    50

    8

    5/16

    7.7

    8.5

    16.3

    28

    56

    55

    10

    3/8

    9.3

    10.1

    18.0

    28

    56

    65

    13

    1/2

    12.3

    13.5

    22.6

    28

    56

    90

    16

    5/8

    15.5

    16.7

    27.5

    28

    56

    100

    19

    3/4

    18.6

    19.8

    32.5

    28

    56

    120
