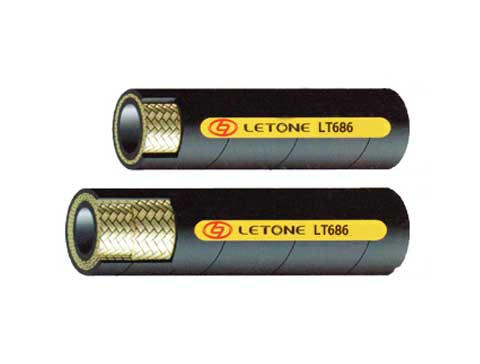

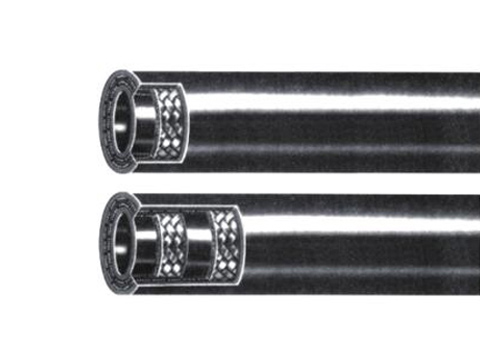

LT686Large Diameter Steel Wire Braided Rubber Hose for Mine

SIZE
(Dash)

SIZE
(in.)

I.D.
(mm)

O.D.
(mm)

Max.W.P.

Min.B.P.

Min.B.R.

Min

Max

Max

(MPa)

(MPa)

(mm)

64

2-1/2-1

63.5

65.3

80.0

3.5

10.5

800

76

3-1

75.5

77.5

92.0

3

9

920

86

3-3/8-1

84.5

86.7

101.0

2.5

7.5

1000

89

3-1/2-1

88.4

90.0

106.0

2.5

7.5

1100

101

4-1

101.0

104.5

121.0

2

6

1300

64

2-1/2-2

63.5

65.3

80.0

7

21

800

76

3-2

75.5

77.5

94.0

6

18

920

86

3-3/8-2

84.5

86.7

103.0

5

15

1000

89

3-1/2-2

88.4

90.0

108.0

5

15

1100

102

4-2

101

104.5

123

4

12

1300
