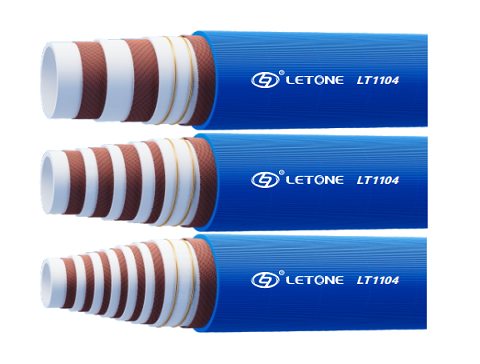

BEVERAGE TRANSFER HOSE
BEVERAGE TRANSFER HOSE

LT1104BEVERAGE TRANSFER HOSE

●
Hose Construction
●
Inner Tube： white EPDM synthetic rubber
●
Reinforcement： multi-spiraled high tensile synthetic fibers and helical spiral-wire
Get a free quote
Online message
24-hour hotline service：
13523078947
Details description Specifications Online message Related Products
●
Application： Suitable for the transfer of milk, juice, alcohol, and other beverages.
●
Hose Construction
●
Inner Tube： white EPDM synthetic rubber
●
Reinforcement： multi-spiraled high tensile synthetic fibers and helical spiral-wire
●
Outer Layer：gray or blue EPDM synthetic rubber
●
Temperature Range：-30°C~100°C (-22°F~212°F)
BEVERAGE TRANSFER HOSE
Specifications
  • I.D O.D Max.W.P Min.B.P Min.B.R W.T
    in mm in mm psi psi mm kg/m
    1/2 13 0.9 22.5 300 1200 130 0.35
    5/8 16 1 26 300 1200 150 0.45
    3/4 19 1.3 32 300 1200 180 0.6
    1 25 1.5 38 300 1200 200 0.94
    1-1/4 32 1.8 45 300 1200 250 1.2
    1-1/2 38 2 52 300 1200 300 1.5
    2 51 2.52 64 150 375 400 1.55
    3 76 3.70 94 150 375 570 2.65
    4 102 4.72 120 150 375 750 4.55
    2 51 2.64 67 300 750 400 1.65
    3 76 3.82 97 300 750 570 2.75
    4 102 4.84 123 300 750 750 4.65
