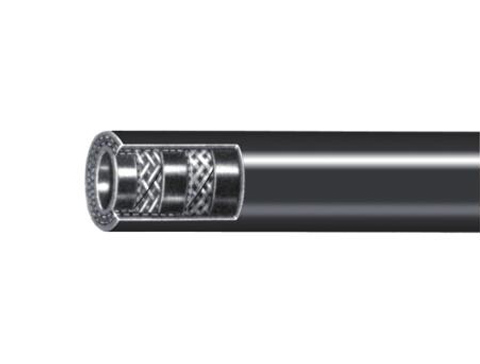

SAE100R4 RETURN RUBBER HOSE
SAE100R4 RETURN RUBBER HOSE

LT782SAE100R4 RETURN RUBBER HOSE

●
Tube：Black oil-resistant synthetic rubber
●
Reinforcement：One or two layers of braided fiber and one layer of spiral steel wire
●
Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Get a free quote
Online message
24-hour hotline service：
13523078947
Details description Specifications Online message Related Products
●
Applications：Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc
●
Tube：Black oil-resistant synthetic rubber
●
Reinforcement：One or two layers of braided fiber and one layer of spiral steel wire
●
Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
●
Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)
SAE100R4 RETURN RUBBER HOSE
Specifications

  • SIZE
    (Dash)

    		 SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    		 Max.W.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    12

    3/4

    18.2

    19.8

    34.9

    2.1

    8.4

    16

    1

    24.6

    26.2

    41.3

    1.7

    7

    20

    1 1/4

    30.6

    33.0

    50.8

    1.4

    5.6

    24

    1 1/2

    36.9

    39.3

    57.2

    1.05

    4.2

    32

    2

    49.2

    52.4

    69.9

    0.7

    2.8

    40

    2 1/2

    61.9

    65.1

    82.6

    0.4

    1.7

    48

    3

    74.6

    77.8

    95.3

    0.4

    1.6

    56

    3 1/2

    87.3

    90.5

    107.9

    0.3

    1.3

    64

    4

    100.0

    103.2

    120.7

    0.25

    1.0
