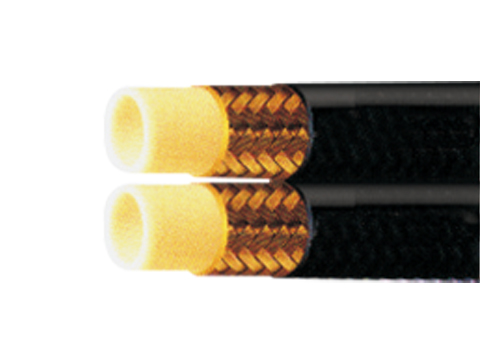

Steel wire braided double resin hose

Steel wire braided double resin hose

LT793Steel wire braided double resin hose

●

Inner Tube：nylon

●

Reinforcement：One or two layers of steel wire braid

●

Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane

Get a free quote

24-hour hotline service：

Details description Specifications Online message Related Products

●

Application：It is suitable for conveying petroleum-based hydraulic oil and water-based hydraulic oil. It can be used as a lubrication line and a blowout preventer control line. It is widely used in hydraulic elevators and agricultural and construction machinery

●

Inner Tube：nylon

●

Reinforcement：One or two layers of steel wire braid

●

Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane

●

Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉）

Steel wire braided double resin hose

Specifications

I.D.			O.D.	W.P.		W.P.		MIN.B.P.	W.T.
Dash	In.	mm	mm	MPa	psi	MPa	psi	mm	g/m
-4	1/4	6.3	12.7	27.5	3990	110	15960	40	360
-5	5/16	7.9	14.3	25	3625	100	14500	40	430
-6	3/8	9.5	18	22.5	3260	90	13040	50	480
-8	1/2	12.7	19.8	18.5	2680	74	10720	70	620
