Applications：It is suitable for the transportation of water-based, petroleum-based hydraulic oil and biodegradable hydraulic oil in harsh working environments such as excavators and other construction machinery, construction machinery, mining machinery and agricultural machinery.

●

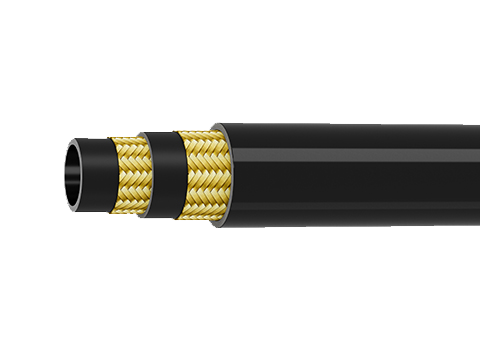

Tube：CR/NBR synthetic rubber

●

Reinforcement：braided high tensile super fexible steel wire, one braid impulse reaches 300,000 cycles, two braids reaches 600,000 cycles

●

OuterLayer：Black glossy anti-aging and non-peeling synthetic rubber layer

●

Low bending radius：30% lower than SAE/DIN standards

●

High pressure：25% higher than SAE/DIN standards

●

Long service life：weather resistant for more than 5 years and warrantied for 2years (with Letone specific hoseconnectors)

●

Temperature Range：-40°C-+121C (-40°F-+250°F)

●

Standard：exceeds ISO18752 BC/CS

Specifications

TYPE	SIZE	I.D.	Max.W.P.	Min.B.P.	Min.B.R.
TYPE	(in.)	(mm)	(MPa)	(MPa)	(mm)
LTSA699-1BC/CS	1/4"	6.4	29.5	118	40
LTSA699-1BC/CS	5/16"	7.9	25	100	55
LTSA699-1BC/CS	3/8"	9.5	23	92	65
LTSA699-1BC/CS	1/2"	12.7	20	80	80
LTSA699-1BC/CS	5/8"	15.9	15	60	105
LTSA699-1BC/CS	3/4"	19	14	56	120
LTSA699-1BC/CS	1"	25.4	11	44	160
LTSA699-1BC/CS	11/4"	31.8	10	40	300
LTSA699-1BC/CS	11/2"	38.1	5	20	480
LTSA699-1BC/CS	2"	50.8	4	16	560
LTSA699-2BC/CS	1/4"	6.4	42	168	55
LTSA699-2BC/CS	5/16"	7.9	38	152	60
LTSA699-2BC/CS	3/8"	9.5	35	140	70
LTSA699-2BC/CS	1/2"	12.7	31	124	110
LTSA699-2BC/CS	5/8"	15.9	28	112	130
LTSA699-2BC/CS	3/4"	19	25	100	160
LTSA699-2BC/CS	1"	25.4	21	84	210
LTSA699-2BC/CS	11/4"	31.8	16.5	66	250
LTSA699-2BC/CS	11/2"	38.1	13.5	54	300
LTSA699-2BC/CS	2"	50.8	8	32	610
